Seismographs measure ground vibration and airblast, providing your mine or blasting operation with key data. Vibration data shows how efficiently explosive energy is confined and used to break rock. Your engineering team can use this data to demonstrate regulatory compliance and maintain trust with surrounding communities.
ERG Industrial supplies field-proven seismographs built to withstand the rigours of life on a working mine site. Browse the range below, or get in touch and we’ll help you match the right unit to your site and monitoring requirements.
Record vibration and airblast data in accordance with industry standards and provide proof of compliance for every blast.
Monitor levels near buildings and infrastructure to act before damage thresholds are reached.
Objective data maintains relationships with surrounding communities, verifies that blasts stay within noise and vibration limits, and flags when designs need adjustments.
Vibration readings reveal how efficiently explosive energy is confined and used to break rock, data your team can use to refine blast designs.
Weather-resistant seismographs keep recording under harsh blasting conditions.
Time-stamped event records provide the evidence to defend against damage claims and support independent expert review.

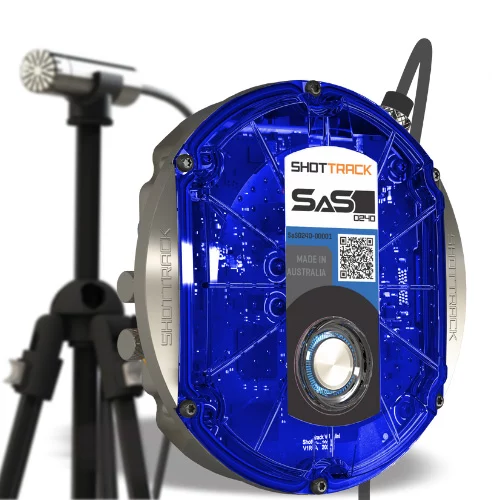

ShotTrack ViB-SaS
| Sensor type | Tri-axial accelerometer |
| Measurement range | Selectable 2, 4, 8, 10, 20, or 40g |
| Resolution | 20-bit |
| Microphone (optional) | 2 Hz to 20 kHz frequency response; ≥160 dB dynamic range |
| Sample rate | Selectable 1,000, 2,000, or 4,000 samples per second |
| Recording duration | Up to 80 s at 1,000 s/s, 40 s at 2,000 s/s, 20 s at 4,000 s/s |
| Onboard memory | Up to 100 events |
| Trigger levels | 1 to 80% of the selected range, set independently per axis |
| Histogram reporting | Peak acceleration on all three axes, every 5 minutes |
| Timing | Onboard GPS with PPS-embedded data; wire-break option for underground use |
| Control | ShockAI app |
| Cloud upload | ShockAI app or web app (three months’ access included) |
| Battery | Rechargeable 4.7Ah Li-ion, USB-C fast charging |
| Diameter | 133mm |
| Height | 36mm |
| Weight | 440g |
| Mounting | M10 centre thread, anchor bolt, mounting plate, or removable outer tabs |
ShotTrack ViB-SaS
| Two measurements, one unit | Captures ground vibration and airblast together |
| Immediate results | Review event data on your phone at the monitoring point |
| Flexible deployment | Mounts at any angle via anchor bolt, base plate, or soft-ground spikes |
| Defensible records | GPS-timestamped data supports compliance reporting and claim response |
| Reporting made simple | ShockAI cloud generates analysis and reports |

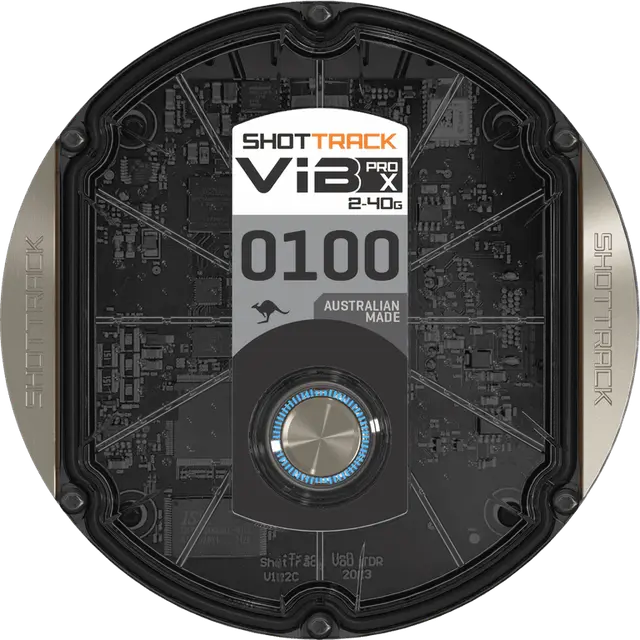

The ViB Pro X is a compact, dual-range vibration monitor for ground vibration from controlled blasting, bridge and structural stability, and construction-induced vibration. It houses a high-precision tri-axial accelerometer selectable from 2g to 40g, controlled via the ShockAI app, with onboard GPS timing, a wire-break option for underground use, and cloud upload to ShockAI for analysis and compliance reporting.
ShotTrack ViB Pro X
| Sensor type | Tri-axial accelerometer |
| Measurement range | Selectable 2-40g |
| Resolution | 20-bit |
| Sample rate | Selectable 1,000, 2,000 or 4,000 samples per second |
| Recording duration | Up to 80 s at 1000 s/s, 40 s at 2000 s/s, 20 s at 4000 s/s |
| Onboard memory | Up to 100 events |
| Trigger levels | 1% to 80% of the selected range, set independently per axis |
| Histogram reporting | Peak acceleration on all three axes, every 5 minutes |
| Battery | Rechargeable 4.7Ah Li-ion battery |
| Charging | USB-C fast charging |
| Diameter | 133mm |
| Height | 36mm |
| Weight | 440g |
| Mounting | M10 centre thread, mounting plate, removable outer tabs |
ShotTrack ViB Pro X
| Dual-range performance | Selectable 2g to 40g range covers near-field blasting through to structural monitoring |
| Immediate results | Review event data in the ShockAI app at the monitoring point |
| High-resolution capture | 20-bit tri-axial accelerometer sampling up to 4000 samples per second |
| Field-ready power | Rechargeable 4.7Ah Li-ion battery with USB-C fast charging |
| Reporting made simple | ShockAI cloud generates compliance analysis and reports from app or web-app uploads |

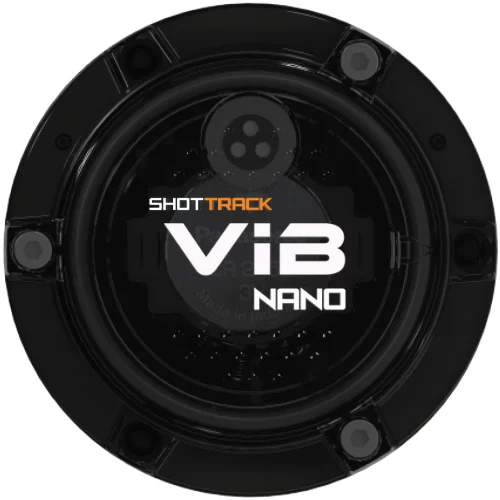

ShotTrack ViB-Nano
| Sensor type | Tri-axial accelerometer |
| Measurement range | Selectable 2, 4, or 8g |
| Resolution | 20-bit |
| Sample rate | Selectable 1,000 or 2,000 samples per second |
| Recording duration | Up to 14 seconds per event |
| Onboard memory | Up to 100 events |
| Trigger levels | 1 to 80% of the selected range, set independently per axis |
| Histogram reporting | Peak acceleration on all three axes, every 5 minutes |
| Connectivity | Bluetooth with mobile app control |
| Battery | Replaceable 620mAh 3V coin cell |
| Diameter | 68mm |
| Height | 28mm |
| Weight | 162g (with battery) |
| Mounting | M8 centre thread, mounting plate, or 50mm and 100mm spikes |
ShotTrack ViB-Nano
| Affordable monitoring | Entry-level price point makes multi-point arrays practical |
| Immediate results | Review event data on your phone at the monitoring point |
| Flexible deployment | Mounts via anchor bolt, base plate, or 50mm and 100mm soft-ground spikes |
| Field-ready power | Swap the coin-cell battery on site, no charging downtime |
| Reporting made simple | ShockAI cloud generates analysis and reports |
